Case Study: Ford F-250 Rear Main Seal Replacement in Parkes
At Medlyn's Auto Services, no two days in the workshop are ever quite the same. While routine servicing and preventative maintenance form an important part of what we do, we also tackle major mechanical repairs that require extensive labour, technical expertise, and plenty of teamwork.
One of the latest jobs through the workshop involved a Ford F-250 requiring a rear main seal replacement, with Jordan, Jesse and Jake working together to get the job completed and the vehicle back on the road.

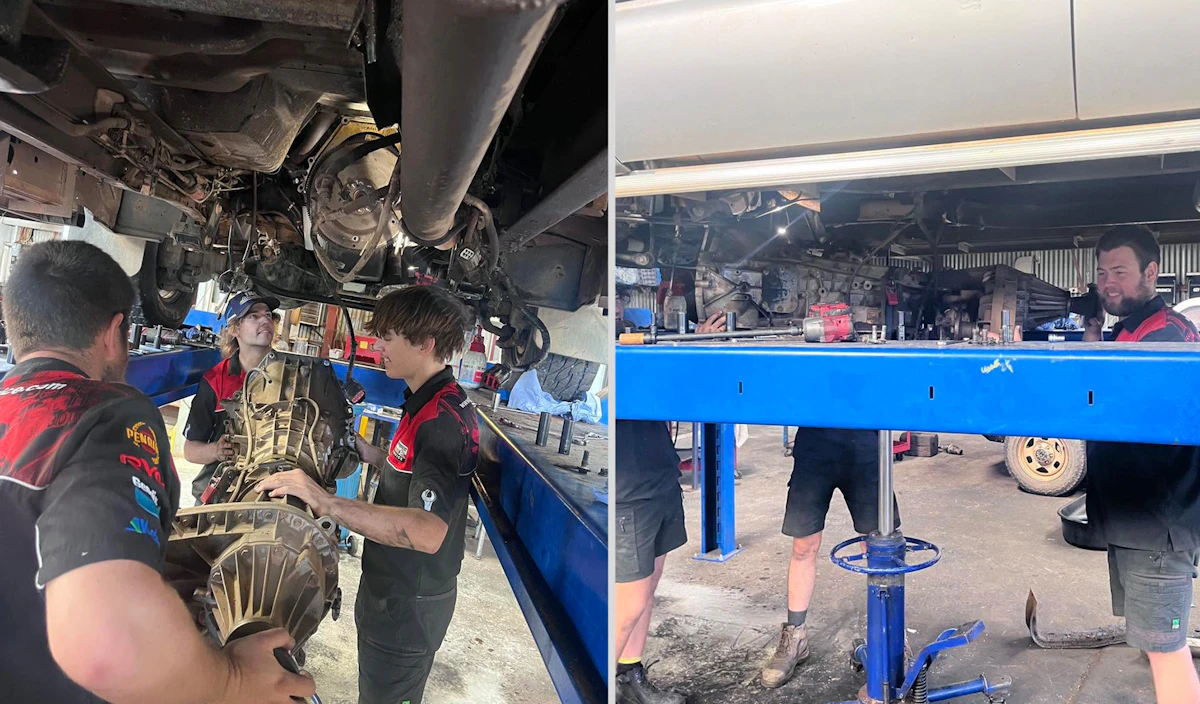

This photo captures part of the reassembly process, with the team carefully manoeuvring the transmission back into position after the repair was carried out.
What Is a Rear Main Seal?
The rear main seal is a critical engine component that sits at the back of the engine block, surrounding the crankshaft where it exits the engine and connects to the transmission.
Its job is simple but incredibly important—it keeps engine oil contained within the engine while allowing the crankshaft to rotate freely. Without an effective seal, oil can escape, leading to leaks that may become progressively worse over time.
Because of its location, the rear main seal is one of the more challenging oil leaks to repair. Unlike valve cover gaskets or sump gaskets, it cannot be accessed from the outside of the engine and requires significant disassembly to reach it.
Signs of a Failing Rear Main Seal
Rear main seals generally deteriorate gradually, and drivers may notice several warning signs before a major leak develops. Some common symptoms include:
- Oil spots appearing underneath the vehicle, particularly near the centre or rear of the engine
- The smell of burning oil if leaking oil reaches hot exhaust components
- Gradual engine oil loss between services
- Oil contamination around the bellhousing area
- Evidence of oil leaks during routine inspections or servicing
Because many engine oil leaks can originate from different locations, accurate diagnosis is essential to confirm whether the rear main seal is genuinely the source of the problem.
Why Is Rear Main Seal Replacement Such a Big Job?
On vehicles such as the Ford F-250, replacing a rear main seal is a substantial undertaking. To gain proper access to the seal, the transmission must first be removed. This involves disconnecting and supporting numerous components, including:
- Tail shafts
- Transmission mounts
- Wiring and sensors
- The torque converter or flywheel assembly
- Crossmembers and associated hardware
Only once these components have been safely removed can technicians gain access to the rear of the engine and the seal itself.
Heavy-duty vehicles like the F-250 present additional challenges due to the sheer size and weight of the drivetrain components involved, making careful planning and teamwork absolutely essential.
Precision Matters Every Step of the Way
Removing an old rear main seal requires considerable care. The surrounding surfaces and the crankshaft itself must not be damaged during removal, as even minor imperfections can affect the performance of the new seal.
Once the old seal has been removed, the sealing surfaces must be thoroughly cleaned and inspected before installation begins.
Fitting the new seal correctly is equally important. It needs to be installed evenly and at the correct depth to ensure proper sealing performance and long-term reliability. Any misalignment can potentially result in future oil leaks and additional repair work.
Teamwork in Action
The photo from this repair show Jordan, Jesse and Jake working together to reinstall the transmission after the rear main seal replacement was completed. Jobs of this scale simply aren't one-person tasks. Successfully removing and refitting large transmission assemblies requires clear communication, careful coordination, and a shared commitment to getting the job done properly.
Having an experienced team working together allows complex repairs to be completed safely and efficiently while maintaining the high standards our customers expect.
The collaborative effort involved is one of the strengths of our workshop and demonstrates the value of experienced technicians supporting one another throughout major mechanical repairs.
Working on Heavy-Duty Vehicles in Parkes
Ford F-250s are built for serious work, whether that's towing, travelling long distances, or handling demanding rural and commercial conditions. Vehicles like these place significant loads on their drivetrains, making regular inspections and preventative maintenance particularly important.
Our team regularly works on larger four-wheel drives, diesel vehicles, and heavy-duty utes, providing everything from routine servicing through to major mechanical repairs such as transmission work, engine repairs, and oil leak diagnosis.
Having the right equipment, workshop facilities, and experienced technicians means we can confidently undertake complex jobs that many smaller workshops may not be equipped to handle.
Keeping Vehicles Reliable for the Long Term
While a rear main seal replacement is a significant repair, addressing the issue promptly helps prevent further problems and protects the long-term reliability of the engine.
Ignoring oil leaks can lead to increased oil consumption, contamination of surrounding components, and potentially more expensive repairs down the track. Early diagnosis and professional repairs remain the best approach to keeping heavy-duty vehicles operating at their best.
At Medlyn's Auto Services, we're proud to provide drivers throughout Parkes with honest advice, quality workmanship, and the experience required to tackle everything from routine maintenance through to major mechanical repairs.
This Ford F-250 is another great example of the skill, teamwork, and attention to detail that goes into every job that comes through our workshop...
